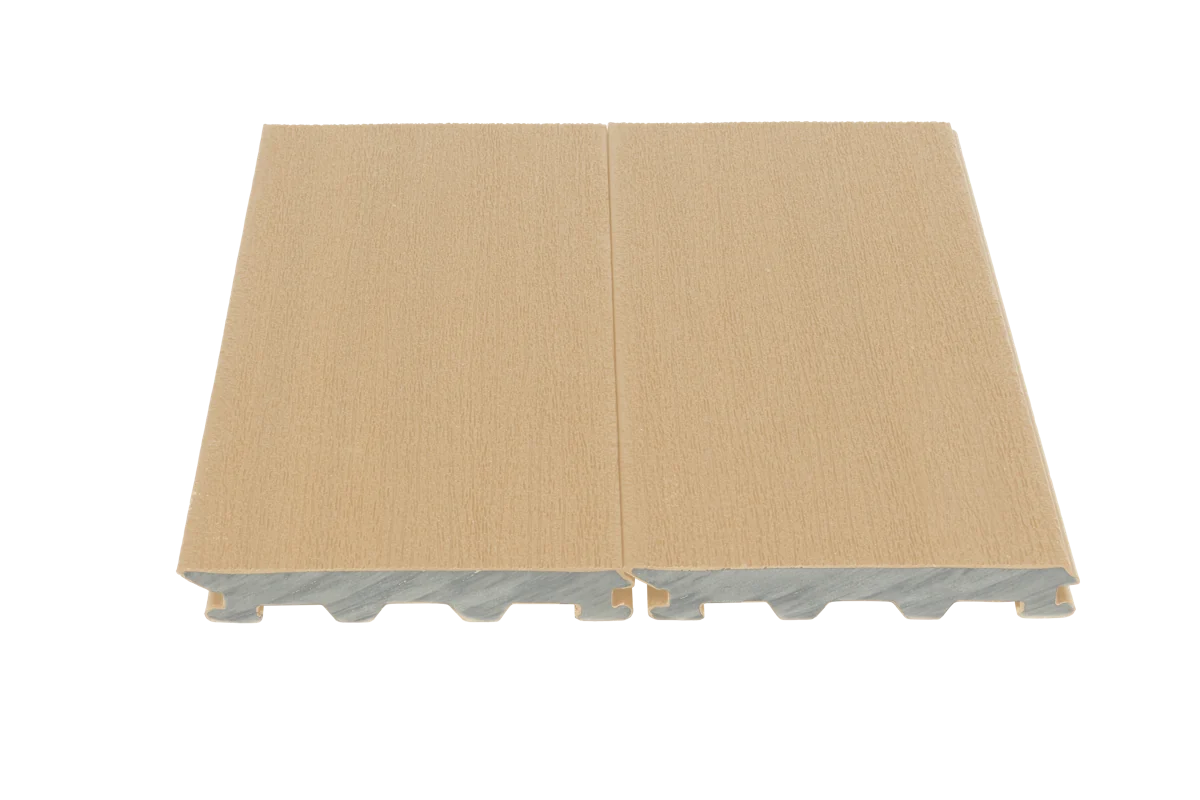

True zero-gap aesthetics.
Connected boards create a sleek, floor-like finish. The no-gap profile helps keep leaves, dirt and debris from falling through, reducing buildup beneath the deck.
NeoLine ZeroGap Decking
A seamless surface.
A smarter deck.
Seamless board lines. Concealed twist-and-click fastening. Discover a composite decking system designed for modern outdoor living, simpler installation and lasting beauty with less upkeep.
A thoughtful alternative
A seamless finish.
A complete system.
NeoLine ZeroGap is a composite decking system built around a clean, modern finish, easier installation and lasting beauty with less upkeep. Connected boards, concealed fastening and all-around protection work together to create an outdoor space that feels thoughtfully finished.
Specifications at a glance
- Width
- 5.6″
- Thickness
- 0.87″
- Length
- 10′
- Surface
- Brushed texture for added grip
- Protection
- All-around Surlyn® capping
- Fastening
- Concealed twist-and-click clips
- Colours
- Six distinctive finishes
- Subframes
- NeoLine sleepers or pedestal–aluminum joists
- Warranty
- 25-year residential warranty*
*Subject to the written warranty. Confirm commercial coverage and compatibility with existing framing with NeoLine.
View installation resources →Features & everyday advantages
Thoughtful details.
Everyday advantages.
From a continuous surface to boards that lift out individually, ZeroGap makes the details work harder. Explore the features that simplify building, cleaning and caring for your deck.
Twist & Click fastening.
Concealed clips simplify assembly and help save labour and project costs. Main deck boards need no top-face screws or nails; perimeter boards still require fastening.

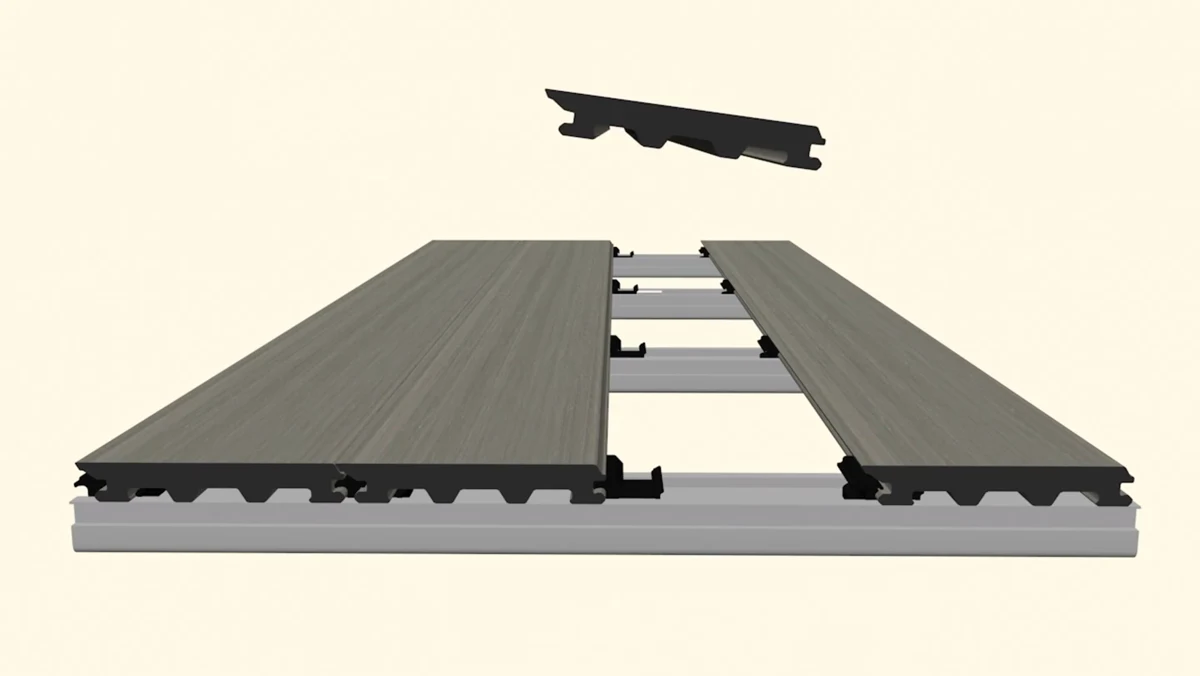

One board. Easy replacement.
Unlatch and lift an individual board—even in the middle of the deck—for replacement or access underneath, without taking up neighbouring boards.
Protection on every side.
A protective Surlyn® cap covers every side, helping resist moisture, stains, fading, scratches and everyday wear.
Lasting beauty. Less upkeep.
Enjoy the character of wood without regular painting, staining or sanding. Routine sweeping and suitable cleaning keep the surface looking its best.
Strength at the core.
Dense composite construction is designed for strength, stability and long-term outdoor use, with a brushed surface for a refined finish.
The Twist & Click system
Simple to fit.
Easy to revisit.

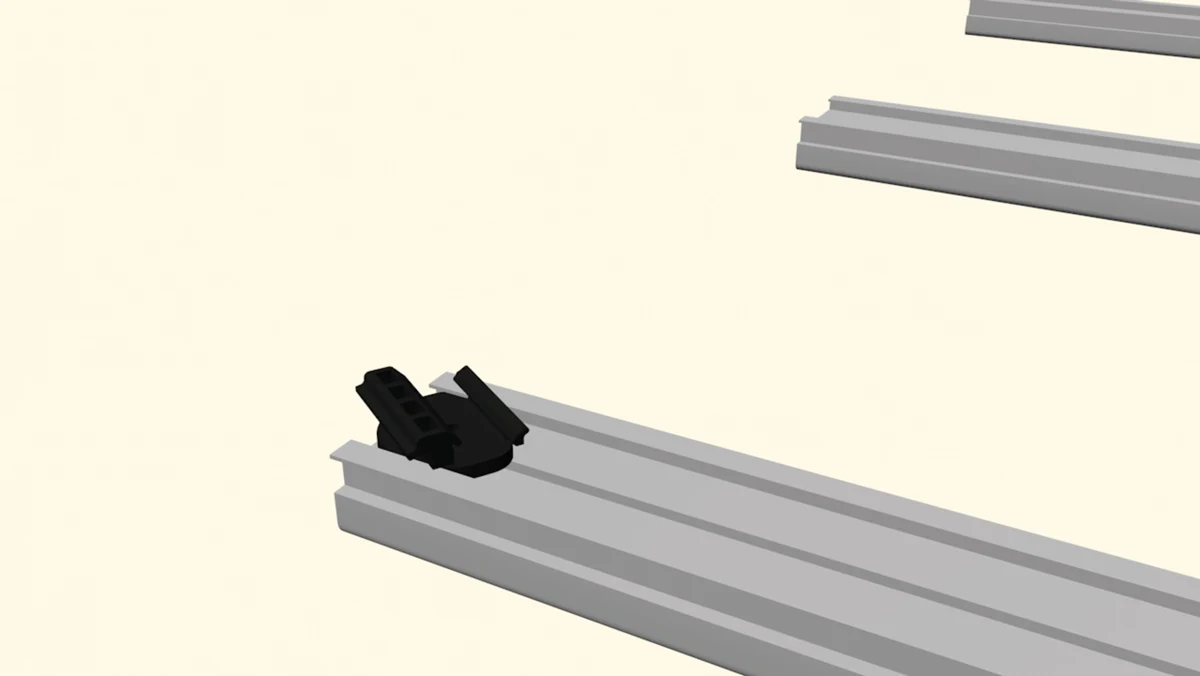

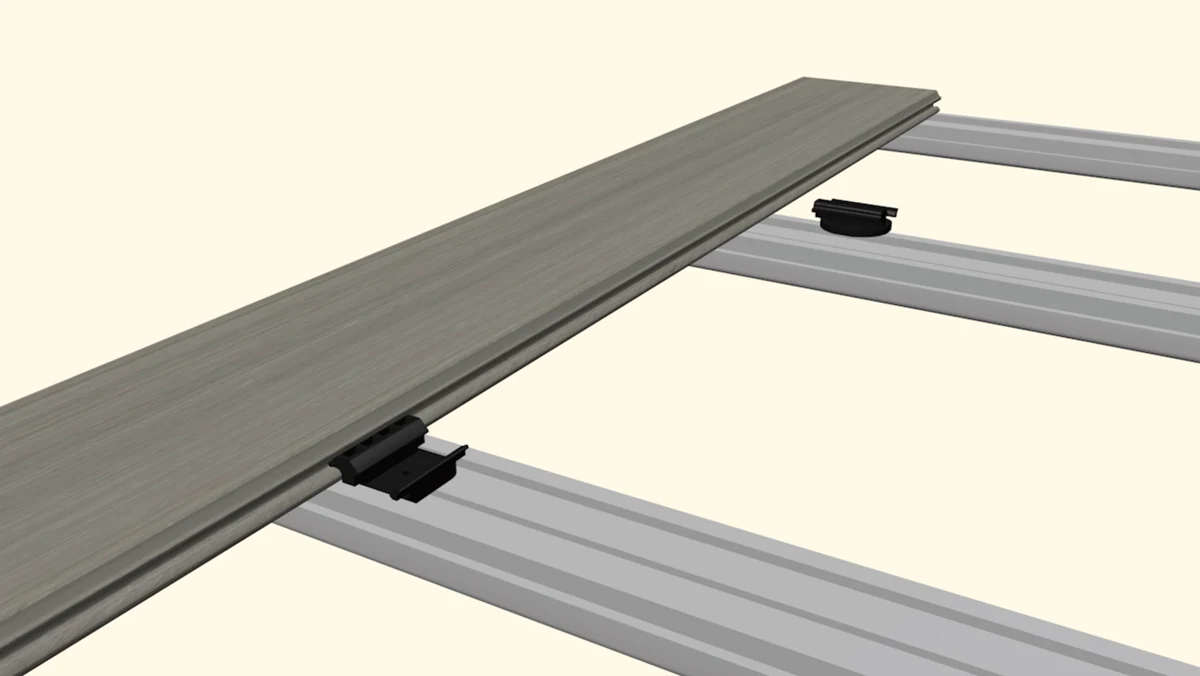

NeoLine’s patented Twist & Click fastening connects the boards to compatible joist channels with concealed clips. Explore the process, from positioning the fixings to lifting a board for future access.
Shown with compatible aluminum joists. Confirm the correct clips and installation details for your subframe with NeoLine, especially when planning around existing wood framing.
Six ways to make it yours
One brushed finish.
Six expressions.
From light White Oak to rich Dark Walnut, choose the tone that belongs in your space. Every colour shares a refined brushed texture and all-around Surlyn® capping. Select a board to explore its character.

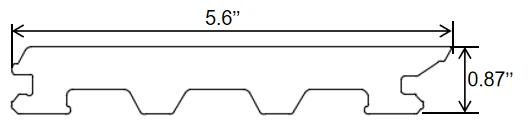

NEOLINE ZEROGAP
ACTUAL PRODUCT PROFILE
ACTUAL PRODUCT PROFILEBrushed texture · Added grip · All-around capping5.6″ × 0.87″ × 10′
Selected colour
White Oak
A light, Scandinavian-inspired neutral for airy patios and contemporary outdoor rooms.
Colour and texture can vary on screen. A physical sample is the best way to confirm your finish.
ZeroGap vs. standard hidden fasteners
See the difference.
Choose with confidence.
Both approaches can create a deck with concealed fixings. ZeroGap pairs that clean look with connected board edges and Twist & Click assembly. Here is how the details compare.
Swipe or scroll to compare both systems
| What matters | NEOLINEZeroGap Decking | Standard Hidden Fastener Decking |
|---|---|---|
| Surface spacing | Connected, no-gap profile.A continuous, floor-like appearance between adjacent boards. | Visible board gaps.Spacing is set by the chosen board and fastening system. |
| Debris underneath | Less debris falling through.Connected edges help keep leaves, dirt and small debris above the deck. | Open spaces between boards.Water and small debris can pass through the gaps. |
| Surface fasteners | Concealed Twist & Click clips.No top-face screws across the main area. Edge boards require fastening. | Concealed clips and screws.Main-area fixings are hidden; edge-board details vary by system. |
| Installation | Designed to save fastening time.Compatible clips engage with the joist channels and board profile to simplify assembly. | Method depends on the system.Clips may be screwed individually or installed with specialist tools. |
| Board replacement | Individual board access.Release and lift a middle board without removing neighbouring boards. | Product-specific removal.Some systems allow middle-board replacement; others need additional dismantling. |
| Protective capping | All-around Surlyn® protection.A protective cap covers every side of the board. | Varies by collection.Cap materials and the number of protected sides depend on the manufacturer. |
Two subframe systems
The right foundation
for your space.
Pair ZeroGap with a Sleeper System or a Pedestal and Joist System. Available height, the existing surface and drainage will guide the best choice for your project.
REGULAR DECKING
1″ high · 7.2′ long
ZEROGAP DECKING
¼″ high · 8.8′ long
01 / LOW-PROFILE SUPPORT
Sleeper System
Each decking type has its own matched sleeper and clip: AL02 with MC03 for regular decking, or AL06 with MC05 for ZeroGap decking. Both provide low-profile aluminum support over a suitable existing surface, including vinyl or torch-on membrane patios.
- Support
- Aluminum sleepers · 1″ regular or ¼″ ZeroGap profile height
- Sleeper spacing
- 16″ on centre
- Best suited to
- Suitable existing patios with limited height
- Planning focus
- Membrane protection, clearances and drainage
02 / ADJUSTABLE SUPPORT
Pedestal and Joist System
Adjustable pedestals and lightweight aluminum joists form a modular frame, with twist-and-click connections that simplify assembly.
- Support
- Adjustable pedestals + aluminum joists
- Best suited to
- Rooftops, terraces and sites needing levelling
- Planning focus
- Height, slope, loads and support layout
A complete system, planned together.
Confirm the compatible board clips, edge fixings, support spacing and drainage with NeoLine. Sleeper depth is not the total finished deck height.
Compare subframe systems →The finishing details
Every part.
A shared purpose.
Explore the ZeroGap joists, sleepers, clips, supports and tools behind the finished surface. Choose the components that match your subframe and installation requirements.
AL05
ZeroGap Decking Joist
Aluminum joist profile for the NeoLine ZeroGap decking system.
AL06
ZeroGap Decking Sleeper
Low-profile aluminum sleeper for the ZeroGap decking system.

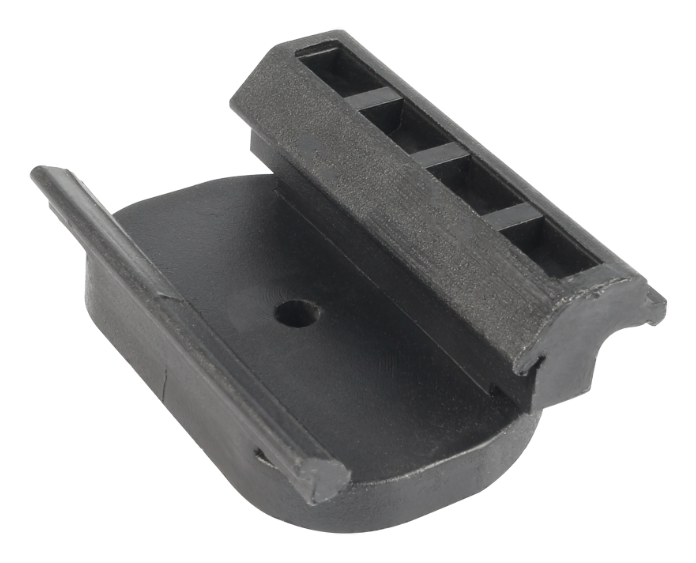

MC05
ZeroGap Decking Clip
Twist-and-click board clip for concealed ZeroGap fastening.
AL05
ZeroGap Pedestal Cradle
Pedestal cradle designed to support the AL05 joist.

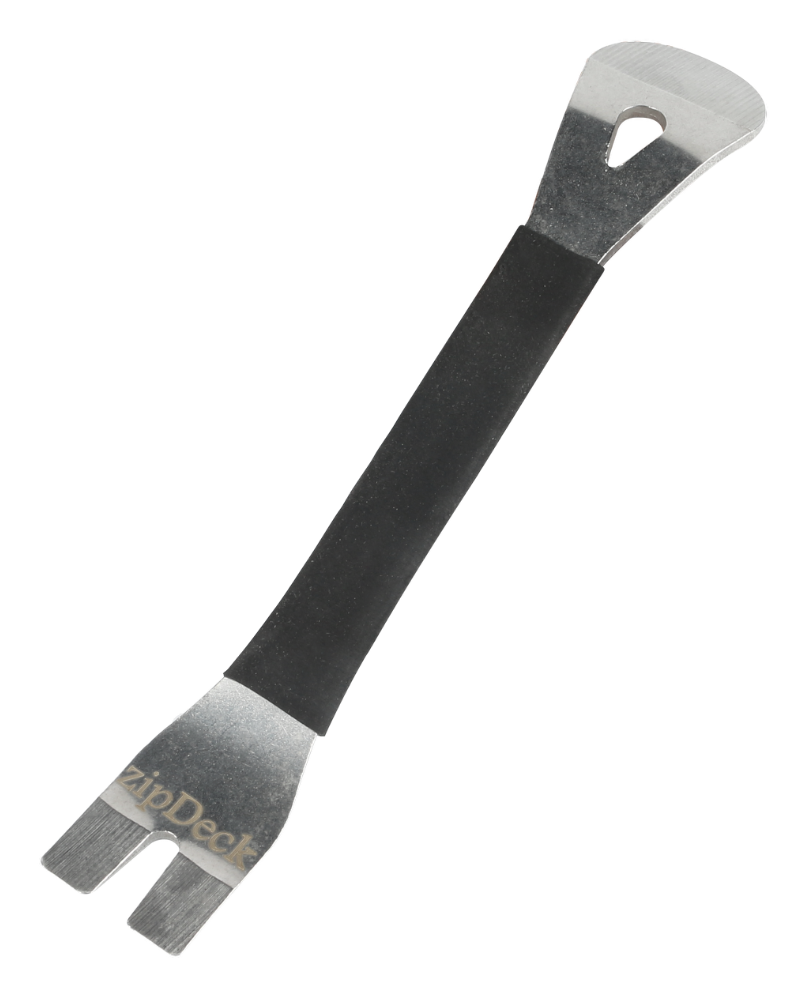

BOARD REMOVAL TOOL
Pry-up Bar
A lifting tool for removing individual ZeroGap boards.

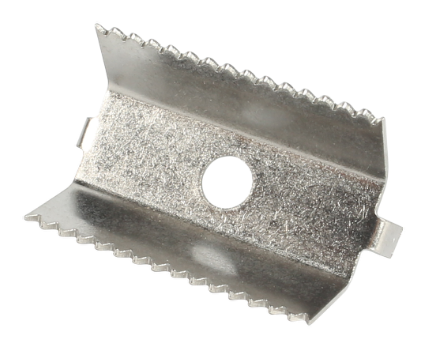

SSL
Anti-Move Clip
SSL anti-move clip for the ZeroGap decking system.
NeoLine decking projects
See the possibilities
take shape.
Explore real NeoLine installations using the two support systems—from a patio refresh to rooftop living. Look closer at the spaces and the foundations behind them.
4 photos Sleeper System · Patio refresh
Dollarton
Explore project
7 photos Sleeper System · Desert Sage
Burkeridge
Explore project
4 photos Pedestal and Joist System · Rooftops
NOMA
Explore project
Project photos show NeoLine decking installations. Board collections vary; ask NeoLine about using ZeroGap in a similar setting.
Installation Video
See ZeroGap
come together.
Watch NeoLine’s ZipDeck installation video for a closer look at the supports, concealed clips and connected boards that make up the ZeroGap system.
ZipDeck Installation
2:03 · NeoLine installation animation
From plans to a finished deck
Make your next
step a simple one.
Review installation guidance, explore the full product brochure or discuss your subframe with NeoLine before ordering.
01 / INSTALLATIONBuild on good
Keep the details
Build on good
guidance.
Explore more NeoLine installation videos, including the pedestal and joist system.
More installation videos Opens in a new tab02 / PRODUCT BROCHUREKeep the details
close at hand.
Browse the NeoLine product brochure and discuss the right specification for your project.
Download brochure PDF, opens in a new tabGood questions. Clear answers.
A little more
about ZeroGap.
From choosing a colour to planning what sits beneath it, find answers to the questions that help your project move forward.
What makes ZeroGap different from conventional decking?
ZeroGap uses a connected board profile to create a surface without open spaces between adjacent boards. Its concealed twist-and-click fastening also allows an individual board to be lifted for access or replacement.
What size are ZeroGap boards?
Each board measures 5.6″ wide × 0.87″ thick × 10′ long and has a brushed finish with all-around Surlyn® capping.

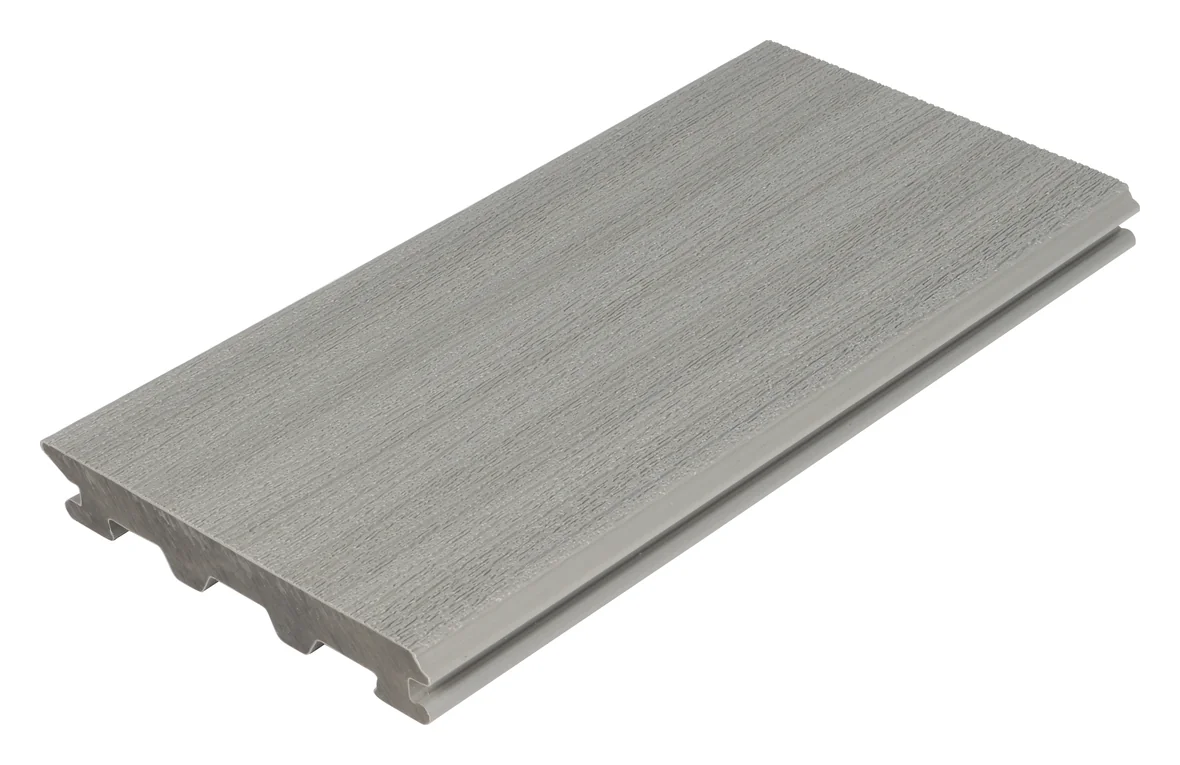

Which colours can I choose?

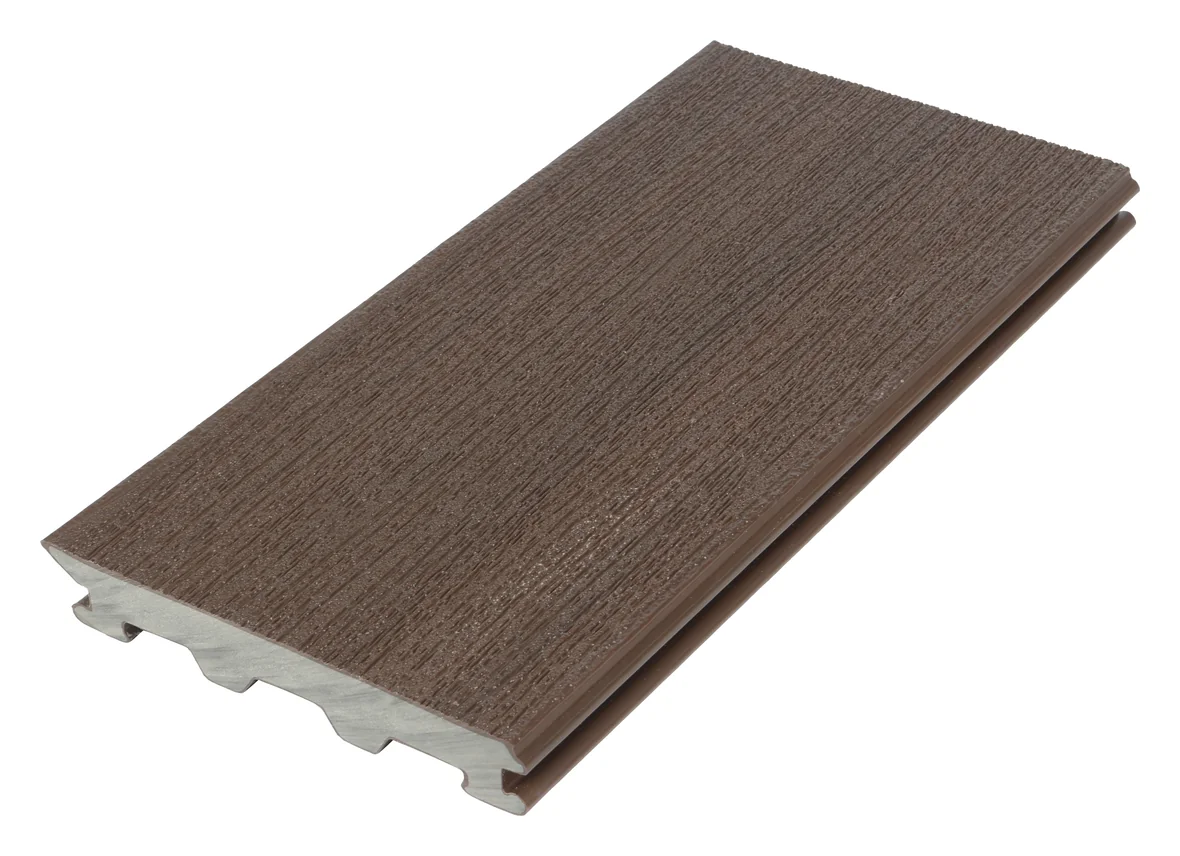

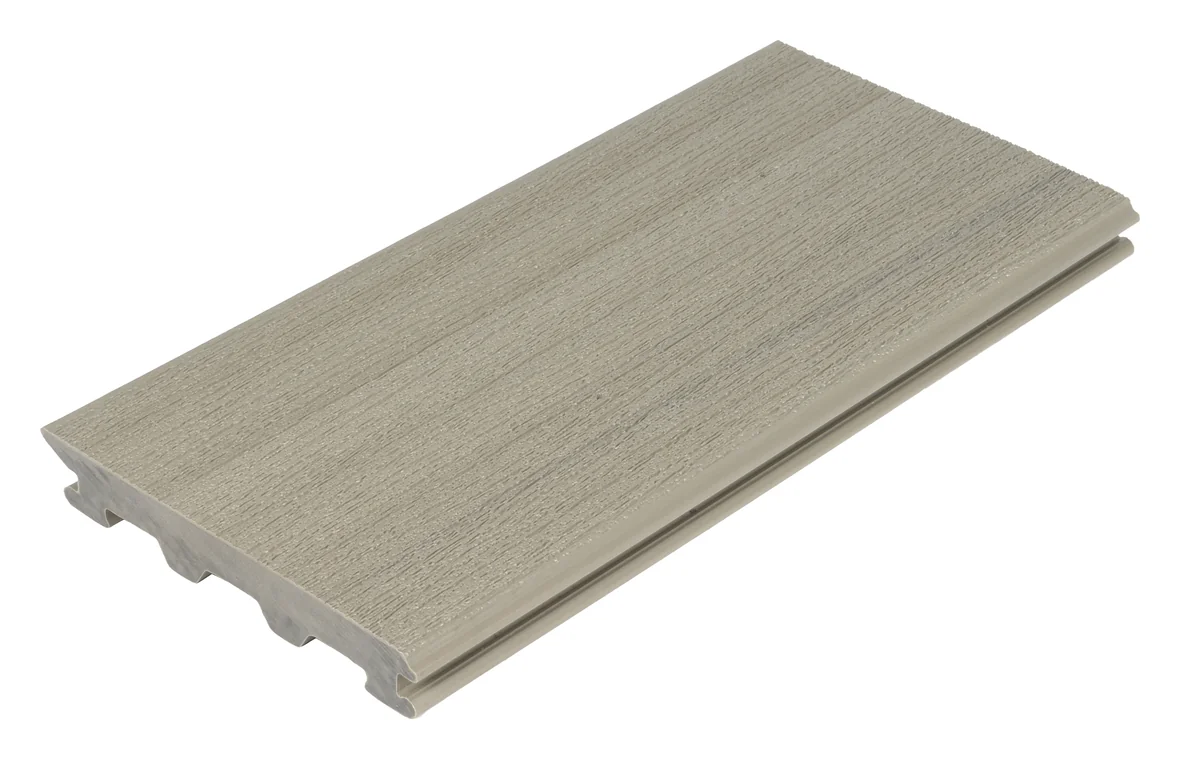

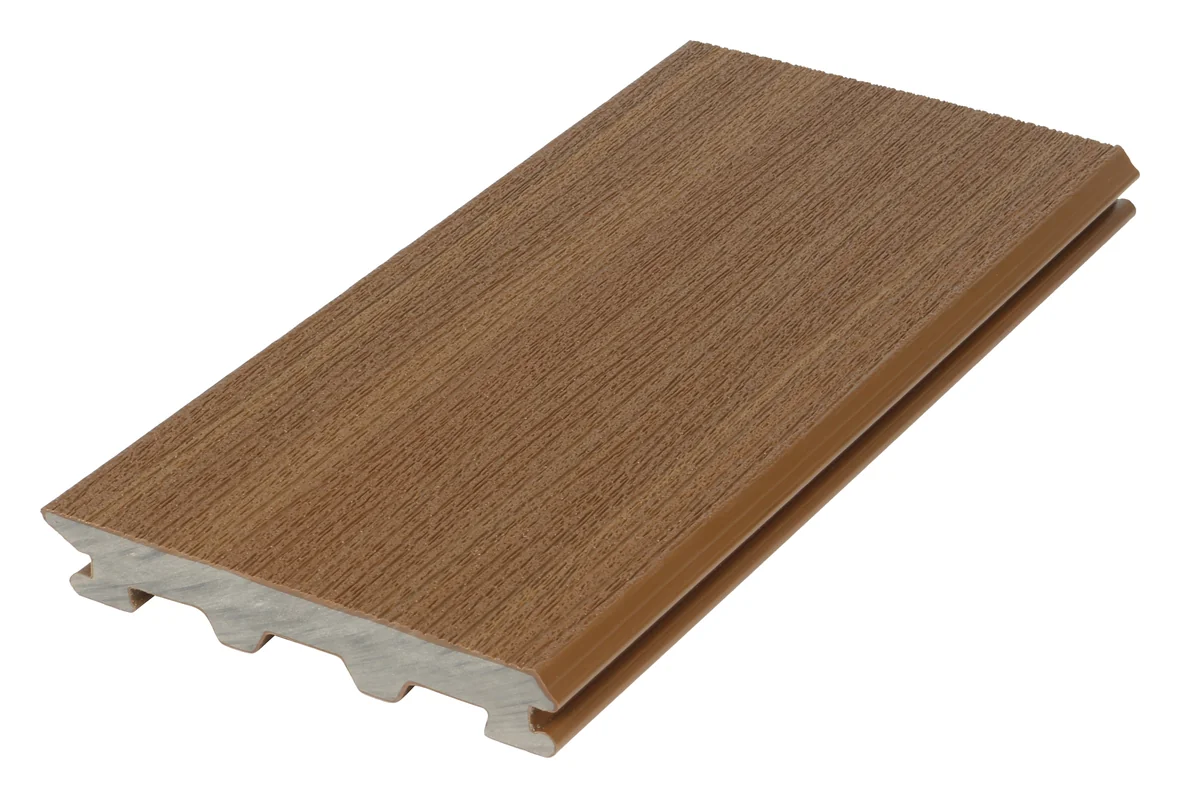

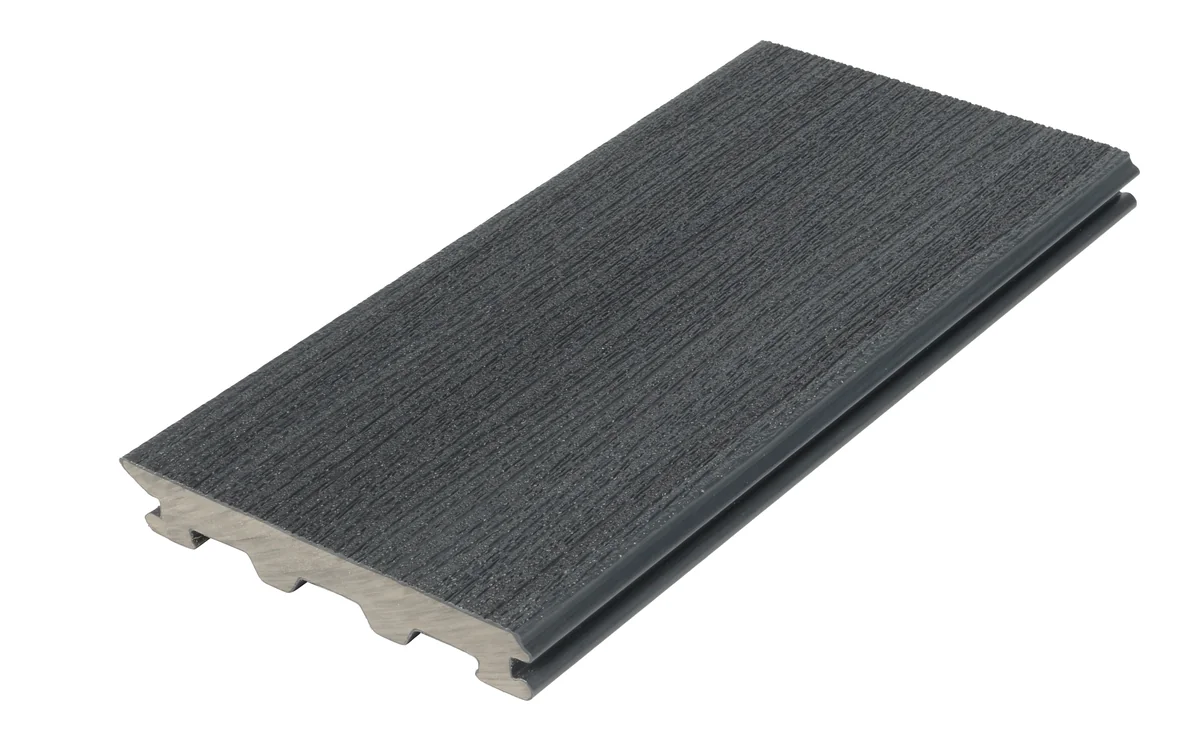

White Oak, Desert Sage, Honey Oak, Misty Grey, Graphite and Dark Walnut. Screen colours can vary, so request a physical sample before making your final selection.
Can I use ZeroGap with standard or existing framing?
NeoLine offers compatible Sleeper and Pedestal–Aluminum Joist Systems for ZeroGap. If you plan to use standard wood framing or an existing structure, ask NeoLine to confirm the frame, support spacing and fastening compatibility before installation.
Can I use either subframe system with ZeroGap?
Yes. ZeroGap can be planned with a Sleeper System or a Pedestal and Joist System. Choose the compatible support profile and fastening combination with NeoLine to suit the substrate, available height and installation conditions.
When should I choose sleepers or pedestals?
Sleepers provide a low-profile option over suitable existing surfaces, such as membrane-protected patios. Adjustable pedestals offer more height flexibility and levelling for rooftop decks, terraces and uneven substrates. Have your installer confirm the support layout and drainage.
Does twist-and-click installation need screws?
Concealed twist-and-click clips secure the main board area without top-face screws or nails. Perimeter edge boards still require fastening. Follow the installation details for your chosen subframe.
Can a board be replaced from the middle of the deck?
Yes. The system is designed to let an individual board be lifted and replaced without removing the surrounding boards.
Does a no-gap surface make the deck waterproof?
A no-gap board surface is not a waterproofing specification. Keep the required membrane and drainage design, and confirm water management, perimeter clearances and installation details with NeoLine and your installer.
How much maintenance does ZeroGap need?
The connected profile helps keep debris from falling beneath the deck. Regular sweeping and suitable cleaning help preserve the brushed surface, with no routine painting, staining or sanding. Ask NeoLine for its recommended cleaning and care guidance.
How does ZeroGap differ from other hidden-fastener decks?
Both can conceal the main-area fixings. ZeroGap also connects adjacent board edges for a continuous surface and uses Twist & Click clips with individual board access. Gap sizes, fastening methods and replacement procedures vary across other products. Explore the side-by-side comparison.
What is the brushed surface like?
All six colours share a refined linear brushed texture for a natural appearance and added grip. Surface conditions affect traction; request the applicable slip-test information if your project needs a specified rating. A physical sample is the best way to assess colour and texture.
What warranty is available?
NeoLine advertises a 25-year residential warranty for its composite decking. Request the current written terms for ZeroGap, including coverage, exclusions and installation requirements. Confirm the applicable commercial warranty with NeoLine before specifying a commercial project.
